RS-LiDAR-16, is world leading 16-beam miniature LiDAR product.
Its main applications are in autonomous driving, robots environment perception and UAV mapping.

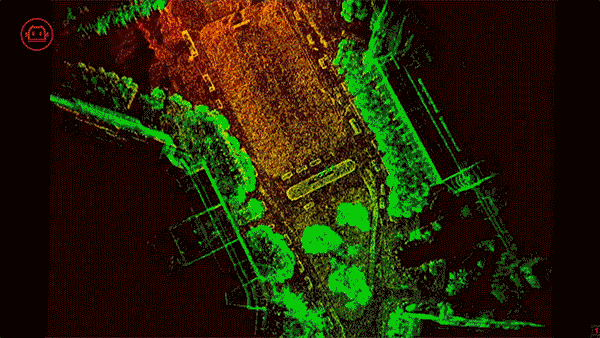

The compact housing of RS-LiDAR mounted with 16 laser/detector pairs rapidly spins and sends out high-frequency laser beams to continuously scan the Surrounding environment. Advanced digital signal processing and ranging algorithms calculate point cloud data and reflectivity of objects to enable machine to ‘see’ the world and providing reliable data for localization, navigation and obstacle avoidance
Real-Time, High Data Rate
RS-LiDAR is designed with 16 powerful laser beams capable of continuous fast-speed scanning on an amazingly high data rate of 320,000 points/second.
Long Range, Better Resolution
Innovations on powerful laser heads and ultrafast digital signal processing technology enables an extended measurement range up to 150 meters.
Top Precision Captures the Last Detail
RS-LiDAR adopts cutting-edge digital signal processing technology and ranging algorithms, successfully meets the world top range accuracy of 2 centimeters.
Specifcations:
| Laser Channels | ………… | 16 Channels |
| Wavelength | ………… | 905 nm |
| Laser Class | ………… | class 1 |
| Accuracy | ………… | ±2cm(typical) |
| Range | ………… | 20cm to 150m |
| Data Rate | ………… | 320,000pts/s |
| Field of View (Vertical) | ………… | +15.0° to -15.0° (30°) |
| Angular Resolution (Vertical) | ………… | 2.0º |
| Field of View (Horizontal) | ………… | 360º |
| Angular Resolution (Horizontal/Azimuth) | ………… | 0.1º to 0.4º |
| RPM | ………… | 300rpm to 1200rpm(5Hz to 20Hz) |
| Imput Voltage | ………… | 9-32VDC |
| Power Consumption | ………… | 9w(typical) |
| Environmental Protection | ………… | IP67 |
| Operating Temperature | ………… | -10°C to +60°C |
| Dimensions | ………… | H:82.7mm*φ:109mm |
| Weight | ………… | 0.84Kg(without Cabling) |
| Data Content | ………… | Spatial Coordinates/Reflectivity |
